Real expert knowledge synergy with laboratory and field testing equipment

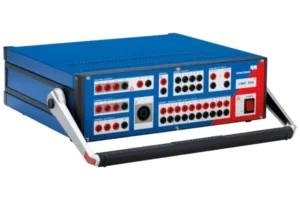

OMICRON CMC 356 Secondary Test Set
The CMC 356 is powerful and practical device for testing all generations and types of protection relays. It is a universal tool for substation commissioning and it commonly used as power system simulator for various cases.

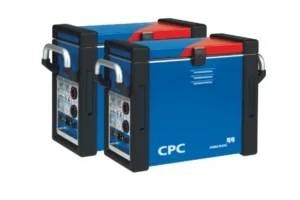

OMICRON CPC 100 Primary Test Set
Testing device for performance checks through primary injection. Used for testing CTs and VTs and a wide range of frequency selective measurements, and to determine numerous transformer parameters, eg. ratio, burden and polarity.

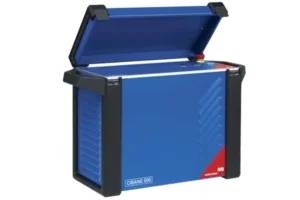

OMICRON CIBANO 500 Breaker Analyzer
3 in 1 test system which enables all standard tests to be carried out on medium and high-voltage circuit breakers (with live and dead tank design). CIBANO 500 combines a micro-ohmmeter, timing analyzer, and a coil and motor supply. All important CB tests on all types of CBs can be carried out even when a station battery is not available.

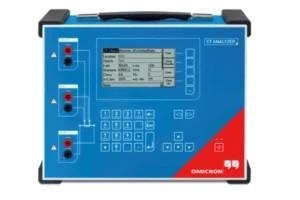

OMICRON CT Analyzer
The CT Analyzer is used for testing metering and protection current transformers, including those with transient behavior. It can also be used for calibration of instrument transformers and testing all essential parameters. The CT Analyzer automatically evaluates current transformers according to the IEC and IEEE.

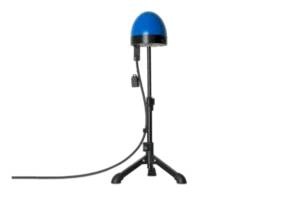

CMGPS 588 – GPS Receiver
The CMGPS 588 synchronization unit is an antenna-integrated GPS controlled time reference. The CMGPS 588 can be used for operating Omicron CMC test sets with a NET-1B/C interface and the Test Universe 3.0. It supports synchronizing the starting point of a test procedure including two or more CMC test sets as well as synchronizing the recording with real-time stamping of measurement samples.

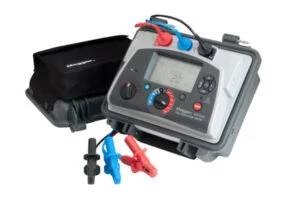

Megger MIT1025 – 10kV Diagnostic Insulation Resistance Tester
Megger MIT1025 is light 10kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment. As well as measuring insulation resistance to 20 TΩ, the MIT1025 also offers various diagnostic tests such as Polarization index, Dielectric Absorption Ratio, Step Voltage, Dielectric discharge and ramp testing.

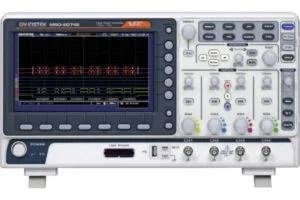

GW Instek MDO-2074E – 200/100/70MHz Oscilloscope
The GW Instek MDO-2074EX is a versatile combination instrument: it’s a mixed-domain 4-channel 70MHz oscilloscope that includes a built-in spectrum analyzer to display the frequency domain, as well as a 2-channel arbitrary waveform generator, a 5,000 count DMM, and a 5V/1A power supply. The first of its kind, MDO-2074EX is the only oscilloscope to provide a space-saving combination of all these instruments, making it ideal for educational or space-restricted use.

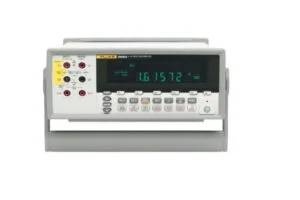

FLUKE 8846A/SU 6.5 Digit Precision Multimeter
The Fluke 8846A 6.5 digit DMMs feature a unique dual display that allows you to measure two different parameters of the same signal from one test connection. To reveal signal quality issues like drift, intermittence and stability, view data as a real time trend plot or histogram, with the unique analyze mode. It performs the functions including measuring volts, ohms, and amps. Basic V DC accuracy of up to 0.0024 %, 10A current range, and a wide ohms range give you an unbeatable combination of measurement capability.

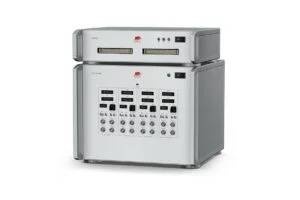

Typhoon HIL Connect – Real-time emulator with HIL602+
To completely test, verify, and certify your power electronics controller in hardware-in-the-loop configuration it is critical that the controller under test is not modified in any way. Controller has to “feel” that it is controlling the real converter hardware, meaning that all the current/voltage/optical I/O interfaces have to behave as the real power stage signals. With 20 ns PWM sampling time, down to 500 ns simulation time step, and ultra-low latency, 6 Series processor has set the industry standard for ultra-high fidelity real-time emulation of power electronics systems.

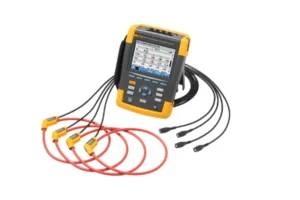

FLUKE 435-II Power Quality and Energy Analyzer
The Fluke 435-II products are designed for users who need to get to the solution of the power quality problem as quickly as possible so that they can minimize expensive downtime. The measurement process and display of data is optimized to get to the most important information as quickly as possible.

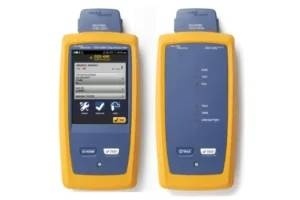

FLUKE DSX-600 Cable Analyzer
The DSX-600 provides essential Cat 6A and Class EA Copper Certification featuring 10 second test times and advanced user interface. Manage jobs and testers from any smart device over Wi-Fi with LinkWare™ Live. Features legendary Fluke Networks reliability backed by worldwide support.

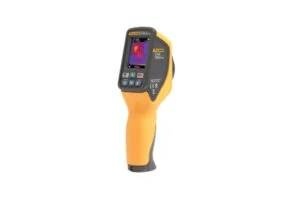

FLUKE VT04A Visual IR Thermometer
Compact and intuitive visual IR thermometer that blends a visual image with infrared heat map overlay. Features NEAR and FAR mode that automatically aligns visual and thermal lenses to correctly locate issues. Includes a center measurement box showing the exact area of temperature measurement on the screen.

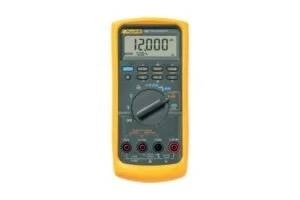

FLUKE 787 ProcessMeter Digital Multimeter
DMM and a loop calibrator in one rugged, handheld tool. Provides a precision 1000 V, 440 mA True-RMS digital multimeter designed to meet 1000 volt IEC 1010 CAT III standards. Features a clear LCD with backlight; 4,000 counts (30,000 counts for DC current). Performs frequency measurements to 20 kHz.
